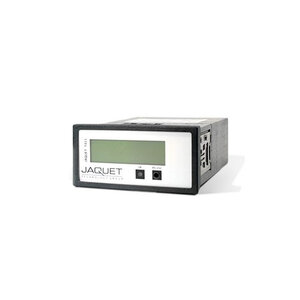

Jaquet T411 single channel tachometer with display

Jaquet T411.00 · 383Z-05318 · single channel speed transmitter with display · 0-35 kHz · speed signal to relay, open collector and analog output · suitable for active and passive sensors

---

The Jaquet T411 is a Single Channel Tachometer speed switch with display which converts absolute speed into an analog signal. This unit will measure from 0-1 Hz all the way up to 35 kHz and gives a 4-20 DCmA output, which can be configured via the included Windows software package. The T411 features a single changeover relay and includes 2 limits (A/B) with programmable hysteresis. The T411's adaptive trigger provides high noise immunity, giving a fast response to over speed conditions.

Features

T411.00 = Tachometer Only w/4-20 DCmA Output and 1 Relay

Converts absolute speed into an analog signal

10-30 DCV Power Supply

Includes 2 limits (A/B) with programmable hysteresis

Isolated signal input with automatic trigger level adjustment

Built-in isolated sensor supply with sensor monitoring

Open collector output of sensor frequency

Pluggable terminals

Configuration and status via included Windows software

Accuracy class 0.05% for limits & 0.5% for analog signals

Advantages

Fast response to over speed conditions

Germanischer Lloyd’s and ABS approval for marine applications

0/4…20 mA or 0/2…10 V analog output with rising or falling characteristics

Adaptive trigger provides high noise immunity e.g. with electromagnetic sensors

Digital input for direct treatment of frequency signals

2 possible relay configuration sets e.g. for start up bridging, controlled via binary inputs

Pluggable terminals

Integrated 2 or 3 wire sensor monitoring and system watchdog
