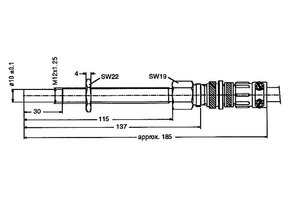

Jaquet DSE1210 speed sensor
Jaquet DSE 1210.02 AHZ · 304Z-03109 · electromagnetic sensor without line amplifier · M12x1.25 · connector · previously FTG 233 A
The Jaquet DSE 1210.02 AHZ is an electromagnetic speed sensor.
Features
- M12x1.25 housing
- Module 1.0 is the smallest structure which can be detected
- Connector integrated
- High temperature -40..+150°C
- Raw signal of the sensor element, no amplifier
- Connection type: 820E-31142, connection plug: 820E-31141
