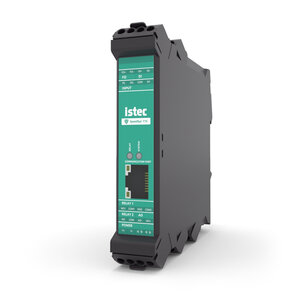

SpeedSys T10 - single channel tachometer (non-DNV GL version)
Istec SpeedSys T10 (non-DNV GL version) · 1-channel tachometer · 0.025 Hz to 35 kHz · speed monitor and switch · DIN-rail mount · speed signal to relay (2x), open collector (1x) and analog output (1x) · Modbus · accepts 2-wire and 3-wire voltage sensors
The SpeedSys T10 is a single-channel speed monitor and switch that delivers speed monitoring functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications.
Design
The SpeedSys T10 has two relays. The system accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity), 2-wire voltage sensors (MPU), and digital input signals from speed encoders.
Due to its compact design the T10 has a small technical footprint and features a low-impact installation. The T10 comes with easy to use push-in connectors and is mounted on a DIN-rail.
Applications
- Aeroderivatives
- Micro turbines
- Wind turbines
- Gas- and steam turbines
- Hydro turbines (Kaplan, Francis, Pelton)
- Compressors
- Expanders
- Marine applications
- Elevators
- General automation
