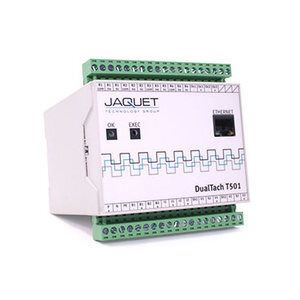

Jaquet T501 dual channel tachometer (AC version)

Jaquet T501.50 · 384Z-05600 · dual channel speed transmitter (AC version) · 0-50 kHz · speed signal to relay, open collector and analog outputs · advanced monitoring and protection logic

---

The Jaquet T501 (previously T500) is a two-channel tachometer for demanding machine monitoring applications. The unit has a measuring range of 0.025 Hz to 50 kHz and gives a 4-20 mA output signal that can be configured via the supplied Windows software.

Input and output signals

2 frequency inputs (speed signals) and 2 binary inputs.

2 analog outputs, 2 open collector outputs and 4 relays.

Features

The T501 has programmable logic, diagnostic functions and measurement functions, a fast response time of 8 ms and contains 4 parameter sets with 6 system limits each for virtually unlimited applications.
